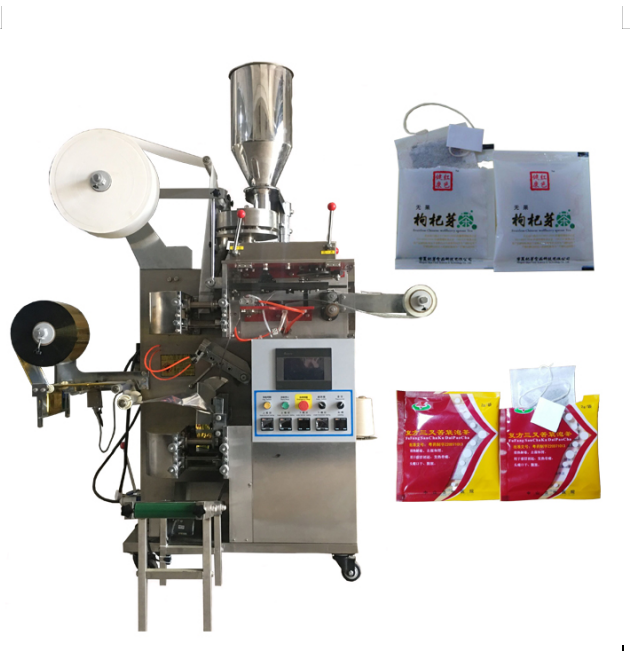

SZ-18 Automatic Double Chamber Tea Bag Packing Machine
SZ-18 Automatic Double Chamber Tea Bagger
A sophisticated, multi-functional packaging solution designed for creating high-quality double chamber tea bags. It seamlessly integrates dosing, bag forming, tagging, and overwrapping into one efficient workflow.
Model: SZ-18
Capacity: 30 ~ 50 bags/minute
Packing Material: Filter paper, Thread, Tag, and composite outer film
Product Highlights
Advanced Double Chamber Design
Produces a dual chamber filter bag that allows for better water circulation and a more thorough, flavorful infusion.
Integrated "One-Step" Forming
Inner filter bag and outer envelope are formed simultaneously, improving efficiency and hygiene by avoiding direct contact.
High-Precision Positioning
Photoelectric eye system guarantees perfect tag and outer bag alignment, ensuring a consistent and professional look.
Complete Adjustability
Packing capacity, inner bag size, and outer bag size can be easily adjusted to achieve the best packaging results.
Technical Specifications
| Parameter | Value |
| Model | SZ-18 |
| Measuring Method | Volumetric Cup Filler |
| Filling Range | 3 ~ 15 ml |
| Packaging Speed | 30 ~ 50 bags/minute |
| Inner Bag Size | L: 50~70mm , W: 40~80mm |
| Outer Bag Size | L: 70~120mm , W: 60~90mm |
| Tag Size | L: 20~24mm , W: 40~55mm |
| Thread Length | 155mm |
| Power Supply | 220V, 50HZ, 3.7KW |
| Dimension (L*W*H) | 1250 * 700 * 1800mm |
| Weight | 370KG |
| Packing Material | Tea filter paper, Thread, Tag paper, Various composite films |
Application Scenarios
1
Tea Industry
Perfectly suited for all varieties of tea leafs, including black tea, green tea, oolong, herbal infusions, and fruit teas.
2
Health & Wellness Sector
Excellent for packing portioned medicinal tea, health care tea blends, and detox supplements.
3
Food & Beverage
Can be used for other small, lightweight granular products where a filter bag presentation is desired.
4
Premium Brands
Ideal for any brand wanting to enhance product value and appearance with high-quality, professional packaging.
Technical Advantage & Quality Control
Production & Quality Assurance Process
Every SZ-18 machine is built in compliance with strict quality management standards. Our process includes the precision fabrication of the machine body, careful assembly by experienced technicians, and systematic wiring of all control systems. Before shipment, each unit undergoes a comprehensive quality check, including calibration of the dosing system, a continuous operational run test, and a final inspection of seal integrity and tag positioning.
Premium Component Sourcing
We build our machines with reliable, high-performance components to ensure stability and a long operational lifespan.
| No. | Component | Brand | Origin/Region |
| 1 | Main Motor | Taibang | Taiwan |
| 2 | Touch Screen | Delta | Taiwan |
| 3 | PLC | Delta | Taiwan |
| 4 | Cylinder | Airtac | Taiwan |
| 5 | Solenoid Valve | Airtac | Taiwan |
| 6 | Relay | Schneider | Germany |
| 7 | Stepper Motor | Lesai | Shenzhen |
| 8 | Manipulator | Jinqi | Taiwan |
| 9 | Temperature Controller | Omron | Japan |
| 10 | Photoelectric Sensor | Ruban | China |
Pre-Sales & After-Sales Service
In-Depth Consultation: We provide a detailed analysis of your packaging needs to confirm the SZ-18 is the optimal solution for your business.
Material Testing: We can run trials with your specific tea leaves and packaging materials to produce sample bags for your approval before purchase.
Installation & Training: Comprehensive guidance on machine setup, operation, and routine maintenance to empower your team.
Responsive Technical Support: Our skilled technical team is available for prompt support via phone, email, or video call.
Frequently Asked Questions (FAQ)
Q1: Why is the photoelectric positioning feature so important?
A2: Photoelectric positioning ensures that the printed outer bag is always cut and sealed in the correct spot and the tag is perfectly centered. It's crucial for creating a professional, consistent brand image and preventing material waste.
Q2: Can I adjust the amount of tea in each bag and the size of the bags?
A3: Yes, the machine is highly flexible. The volumetric cup filler can be adjusted to dose from 3 to 15ml of tea. Additionally, the parameters for the inner bag, outer bag, and tag sizes can all be modified to meet your requirements.

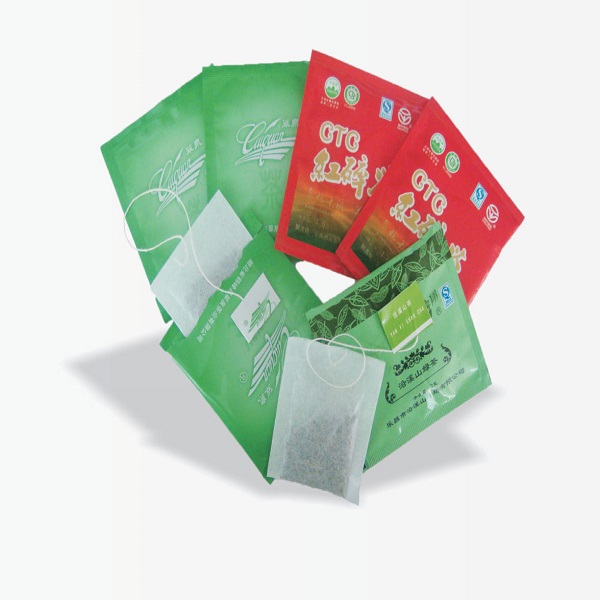

Q3: What types of packaging materials do I need to run this machine?
A4: You will need four primary materials: 1) Tea filter paper for the inner bag, 2) Cotton thread, 3) Tag paper, and 4) A heat-sealable composite film (like paper/plastic or plastic/aluminum/plastic) for the outer envelope.
