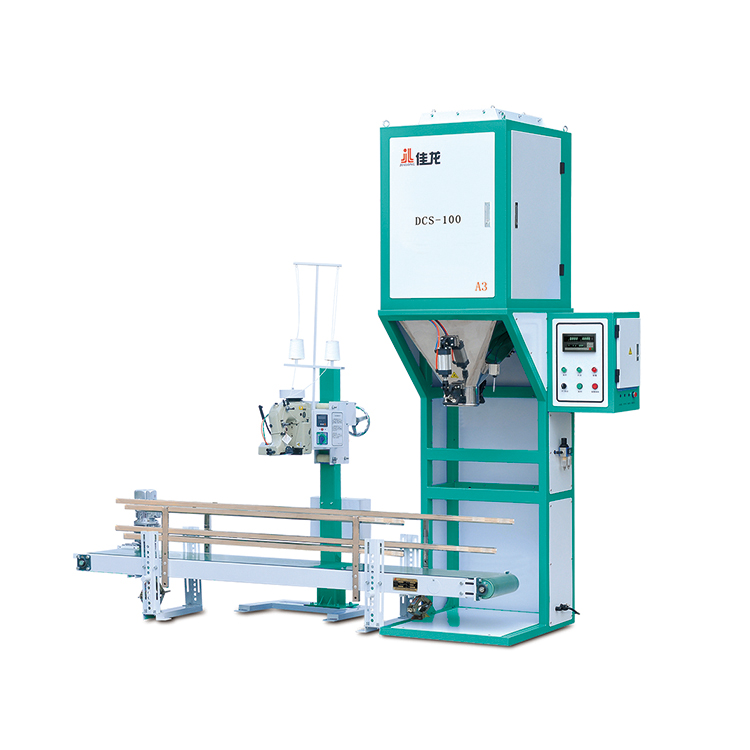

Heavy-Duty Automated Packaging Line for Grains & Pellets - Model DCS-100-A3
DCS-100-A3 Heavy-Duty Packaging Line
A robust, high-performance automated packaging line for heavy-duty industrial applications. It is engineered for large-format bags, with an exceptionally wide weighing range from 25 to 100 kg.
This complete system, built with world-class components, is the ideal solution for packaging rice, grains, animal feed pellets, and other granular materials.
Model: DCS-100-A3
Weighing Range: 25 - 100 kg
Packing Speed: 300 - 400 bags/hour
Product Highlights
Wide Weighing Range
Offers exceptional flexibility to package a variety of large bag sizes from 25 kg up to 100 kg on a single machine.
High-Precision Feeding
Utilizes a three-stage feeding system to achieve an outstanding accuracy grade of X(0.1), minimizing product giveaway.
Fully Automated Line
Seamlessly integrates weighing, filling, and automated bag closing with a heavy-duty conveyor and sewing machine.
Compact & Efficient Design
An innovative single-cylinder design creates a compact structure, ensuring fast response times and low failure rates.
Technical Specifications
| Model | DCS-100-A3 |
| Weighing Range | 25 - 100 kg |
| Packing Speed | 300 - 400 bags/hour |
| Accuracy Grade | X(0.1) |
| Power Consumption | 4N-AC 380V 50Hz 1KW (Customizable) |
| Air Consumption | 0.4 - 0.6 MPa, ~1 m³/h |
| Installation Height | Approx. 2800 mm |
Main Configuration
| Item | Brand |
|---|---|
| Weighing Controller | Zhiyuanda |
| Load Cell | ZEMIC |
| Switching Power Supply | Meanwell (Taiwan) |
| Buttons & Knobs | Schneider (France) |
| Pneumatic System (Cylinder, Solenoid Valve) | Airtac (Taiwan) |
Application Scenarios
1
Grain Milling & Processing
The premier solution for large-scale bagging of rice, wheat, corn, and other grains from processing lines.
2
Animal Feed & Pellet Production
Ideal for the high-speed, accurate packaging of animal feed pellets and pelleted fertilizers.
3
Sugar & Salt Industries
Perfectly suited for packaging bulk crystalline sugar and industrial salt into large-format bags.
4
Industrial Materials
Excellent for bagging free-flowing granular materials like plastic resins, specialty sand, and minerals.
Detailed Information
Our Commitment to Quality & Reliability
Premium Component Sourcing: We source electrical and pneumatic components directly from global industry leaders to ensure consistent quality and peak performance.
Expert Assembly: Our technicians meticulously assemble each machine, ensuring every component, from the 143L weighing hopper to the sewing station, is perfectly aligned and calibrated.
48-Hour System Stress Test: Every packaging line undergoes a 48-hour continuous operation test to verify its mechanical endurance and long-term stability at full capacity.
Final Quality Certification: A senior engineer conducts a final audit, certifying all functions, safety features, and electrical systems before shipment.
Frequently Asked Questions (FAQ)
1. What is included in the complete packaging line?
The standard line includes the main packaging scale, an industrial sewing machine, and a 2.8-meter lifting conveyor. The system is designed to work as one integrated unit.
2. Can this machine handle different bag materials?
Yes. The included industrial sewing machine is perfect for open-mouth bags made from woven polypropylene (PP) and paper. The system can also be configured with a heat sealer for plastic (PE) bags.
3. How does the feeding system achieve such high accuracy?
It uses a three-stage gravity feed. A large gate opens for a fast "coarse" feed, followed by a smaller gate for a "medium" feed, and finally, a very precise "fine" or "dribble" feed to top off the bag to the exact target weight.
4. How is the machine operated?
The machine is highly automated. An operator places an empty bag on the filling spout. The machine then automatically clamps the bag, fills it to the precise weight, and releases it onto the conveyor which carries it through the sewing machine for automatic closing.
