High-Precision Automated Bulk Bagging Line

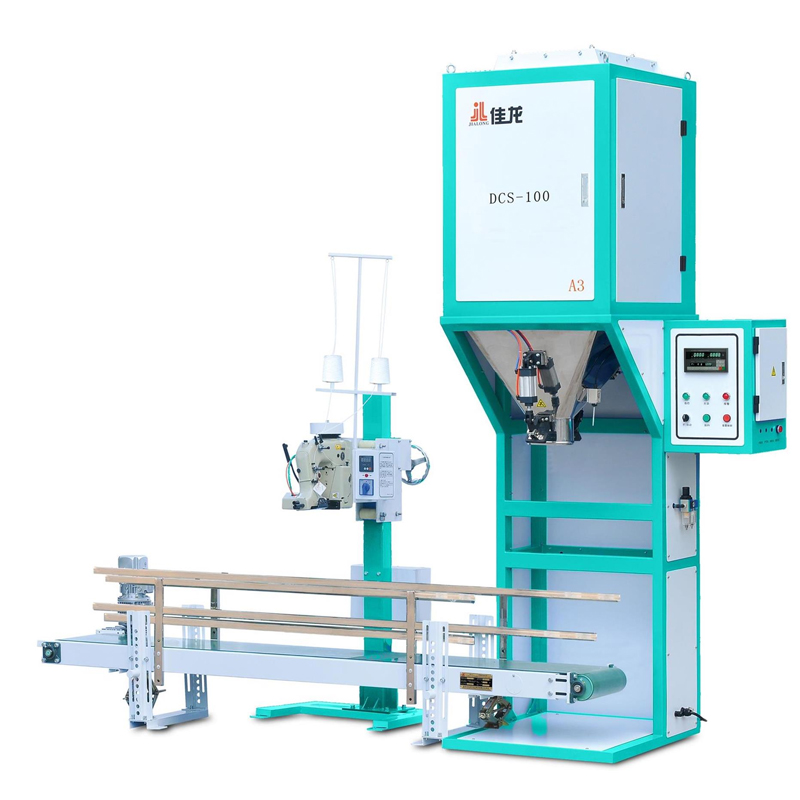

Heavy-Duty Automated Bagging Line
An industrial workhorse, this all-in-one packaging equipment solution integrates a scale, conveyor, and sewing machine into a seamless, high-speed system for bagging bulk granular materials.
Weighing Range: 25 - 100 kg
Capacity: 300 - 400 bags/hour
Accuracy Grade: X(0.1)
Product Highlights
High-Precision Weighing System
Achieves an exceptional accuracy grade of X(0.1) thanks to an advanced three-level feeding system for speed and precision.
Complete Automated System
An all-in-one solution that includes the scale, conveyor, and sewing machine for a fully automated process, reducing manual handling.
Intelligent & Stable Controller
Features automatic error correction, fault diagnosis, and a powerful anti-vibration and anti-interference filter for stable operation.
Ready for Smart Factory Integration
Equipped with a reserved RS232/485 interface for seamless data communication with your central factory management system.
Technical Specifications
| Parameter | Value |
| Weighing range | 25 ~ 100 kg |
| Speed | 300 - 400 bags/hour |
| Scale interval | 20 g |
| Accuracy grade | X(0.1) |
| Sewing machine type | Single needle / Double thread |
| Power supply / consumption | 4N-AC 380V / 50Hz / 1KW |
| Air supply / consumption | 0.4 ~ 0.6 MPa / 1m³/h |
| Installation height | 2800 mm |
| Data Interface | RS232/485 Port |
Main Configuration
We build our machines for ultimate reliability by using components from internationally recognized manufacturers.
| No. | Item | Brand |
| 1. | Weighing controller | CN/Zhiyuanda |
| 2. | Switching power supply | TW/Meanwell |
| 3. | Button, Knob | FR/Schneider |
| 4. | Load cell | CN/ZEMIC |
| 5. | Pneumatic elements | TW/Airtac |
| 6. | Air cylinder | TW/Airtac |
| 7. | Solenoid valve | TW/Airtac |
Frequently Asked Questions
Q1: What is the main benefit of the three-level feeding system?
A1: The three-level system uses a fast (bulk) feed to fill most of the bag quickly, a medium feed to approach the target weight, and a fine (dribble) feed to top it off with extreme precision. This combination allows the filling machine to be both very fast and highly accurate.
Q2: What is included with the packaging equipment?
A2: This is a complete line solution. The purchase includes the main packing scale body, a heavy-duty single needle/double thread sewing machine, and a 2.8-meter screw-type lifting conveyor to create a fully automated workflow from filling to a closed bag.
Q3: Can this machine connect to our factory's data system?
A3: Yes. The packing machine comes standard with a reserved RS232/485 interface, which enables it to communicate production data with your central management system or SCADA software for modern, smart factory integration.
